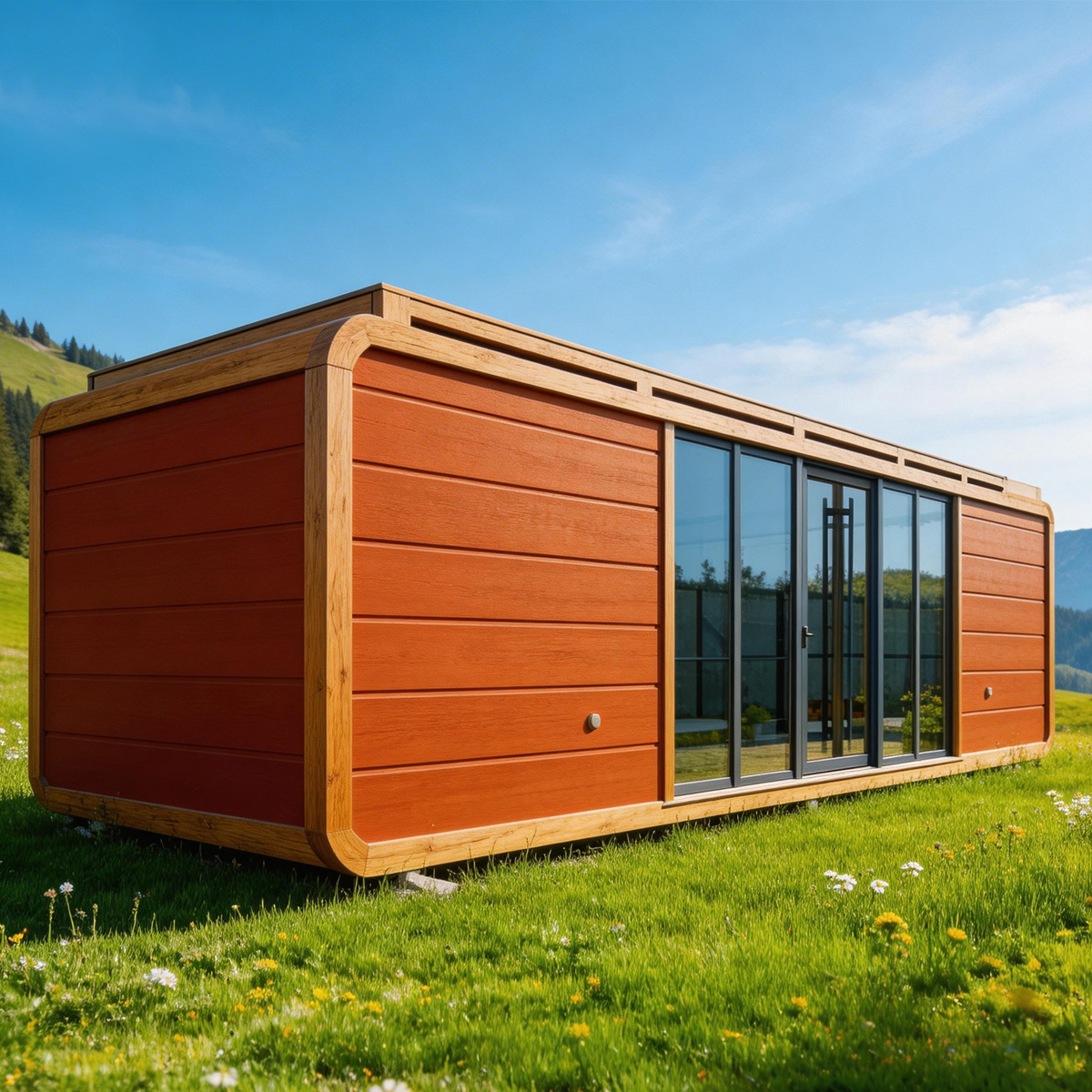

40Apple Warehouse – Exterior Wall Galvanized Sheet
High-quality galvanized steel exterior wall for superior weather resistance
Fast assembly and modular construction design
Strong structural stability with long service life
Customizable layout and expandable structure
Suitable for warehouse, office, showroom, or temporary housing use
Modern design with large window integration for natural lighting
Product Details
The 40Apple Warehouse is a modern prefabricated modular structure designed for fast installation and versatile use in industrial, commercial, and residential applications. Built with high-strength galvanized steel exterior wall panels, it offers excellent durability, corrosion resistance, and long service life even in harsh environments.
Product Specifications
| Category | Item | Specification |
|---|---|---|
| Bottom | square tube |
100 × 100 × 2.5 / 80 × 160 × 2.0
40 × 80 × 1.5
50 × 50 × 1.2
|
| Wood floor | 1cm | |
| cement pressure board | 1.8cm | |
| Wall | square tube |
100 × 100 × 2.5 / 80 × 160 × 2.0
50 × 100 × 1.5
50 × 50 × 1.2
30 × 50 × 1.0
|
| Galvanized sheet | 1.2mm | |
| Oriented Strand Board | ENF grade 9mm | |
| Interior wall bamboo and wood fiber board |
8mm | |
| Insulation EPS | 50mm | |
| Roof | square tube |
100 × 100 × 2.5 / 80 × 160 × 2.0
80 × 80 × 1.5
40 × 80 × 1.2
50 × 50 × 1.2
|
| Waterproof coating | Oily structural adhesive | |
| OSB board | ENF grade 9mm | |
| Insulation EPS | 50mm | |
| Galvanized sheet metal bent part |
1.2mm | |
| Ceiling bamboo and wood fiber board |
8mm | |
| Doors and windows | door | Thermal break aluminum |
| Window | Thermal break aluminum | |
| Glass | Tempered glass | |
| door and window frames | Aluminum sleeve | |
| paint | Paint specially for galvanized and stainless steel |
Alloy paint finish |
| electricity | Main storyline | 6m² copper sheath |
| Switch socket | 4m² copper sheath | |
| light wire | 1.5m² copper sheath | |
| toilet | square tube |
40 × 60 × 1.2
30 × 50 × 1.0
|
| Stone plastic wall panel | 8mm | |
| Titanium Alloy Door | Industry standard | |
| Water heater | 50L | |
| Hot air, exhaust-type bathroom heater |
Industry standard | |
| showerhead | Industry standard | |
| toilet | Industry standard | |
| Sink | Industry standard | |
| Distribution box | Residual current device | Light switch circuit one |
| Residual current device | Socket 1 | |
| Residual current device | Air conditioner socket, one way | |
| Residual current device | Total open | |
| Switch | Five holes | Industry standard |
| 16A Air Conditioner Socket | Industry standard | |
| Double-pole switch | Industry standard |
